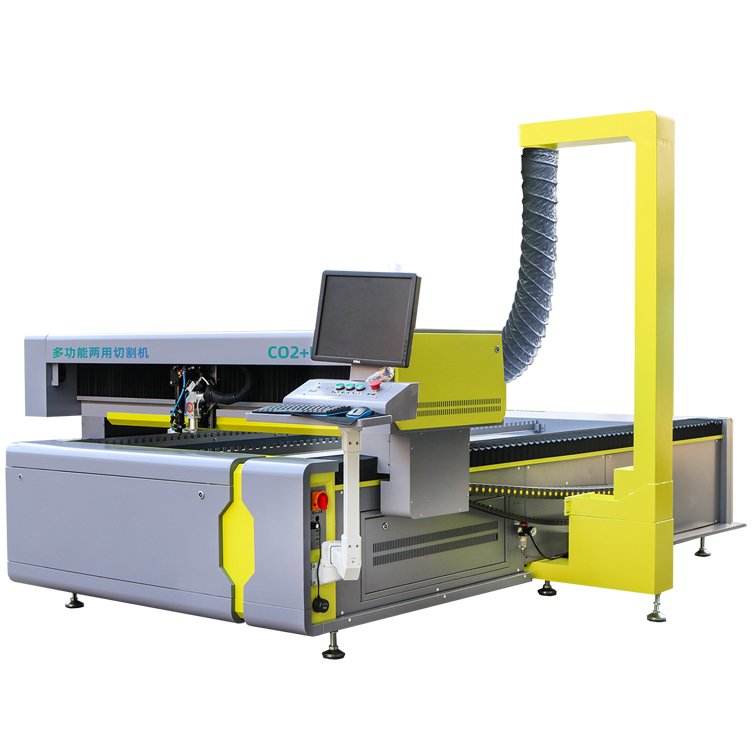

GTX-1390C / 1325C Fiber + Co2 Laser Cutting
GTX-1390C / 1325C Fiber + Co2 Laser Cutting Fiber Laser Machine Kuala Lumpur (KL), Malaysia, Selangor, Desa Tun Razak Supplier, Suppliers, Supply, Supplies | K Plus Machine Tech Sdn Bhd GTX-1390C Customize Laser Tube Fiber + Co2 Laser Head

Specification

  GTX-1390C GTX-1325C
Maximum Cutting Area 1300 x 900mm 1300 x 2500mm
Fiber Laser Power 1500W / 2000W
Co2 Laser Power 150W
Maximum Cutting Speed 0-400mm/s
Resolution 0.025mm
Minimum Line Width 0.15mm
Re-Positioning Accuracy +-0.10mm
Humidity 0-45C
Maximum Cutting Tickness Carbon Steel <15mm/20mm,    Stainless Steel < 6mm/8mm,   Acrylic < 30mm
File Format bmp, gif, jpg, pcx, tga, tiff, plt, cdr, dwg, dxf
Voltage AC380V ~ 415V    50Hz/60Hz
Power <5000W
Cooling System Water Chiller
Net Weight 1800KG 2100KG
Dimensions (W)2263 x (L)2110 x (H)1700 (W)2450 x (L)4190 x (H)1905
